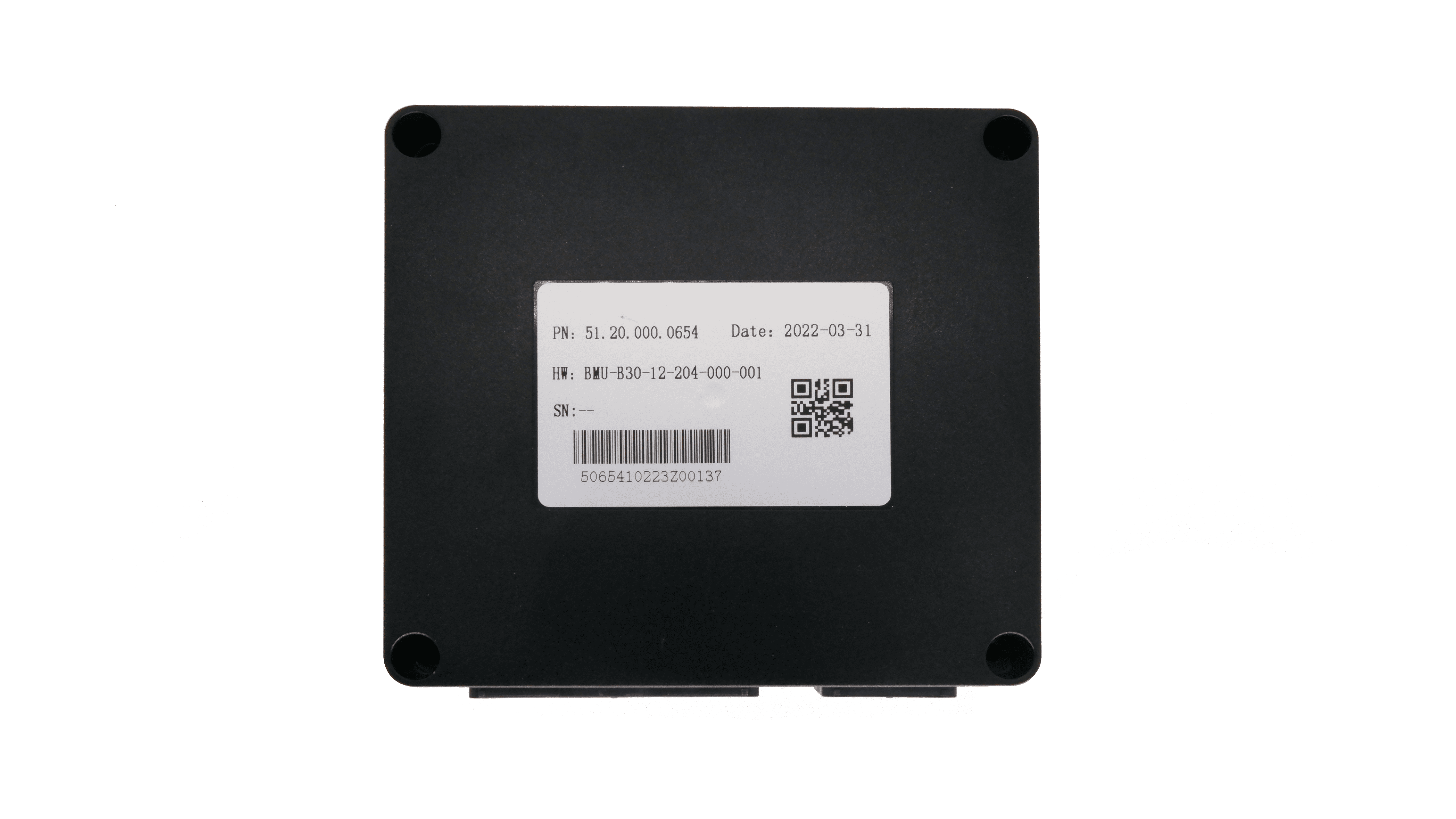

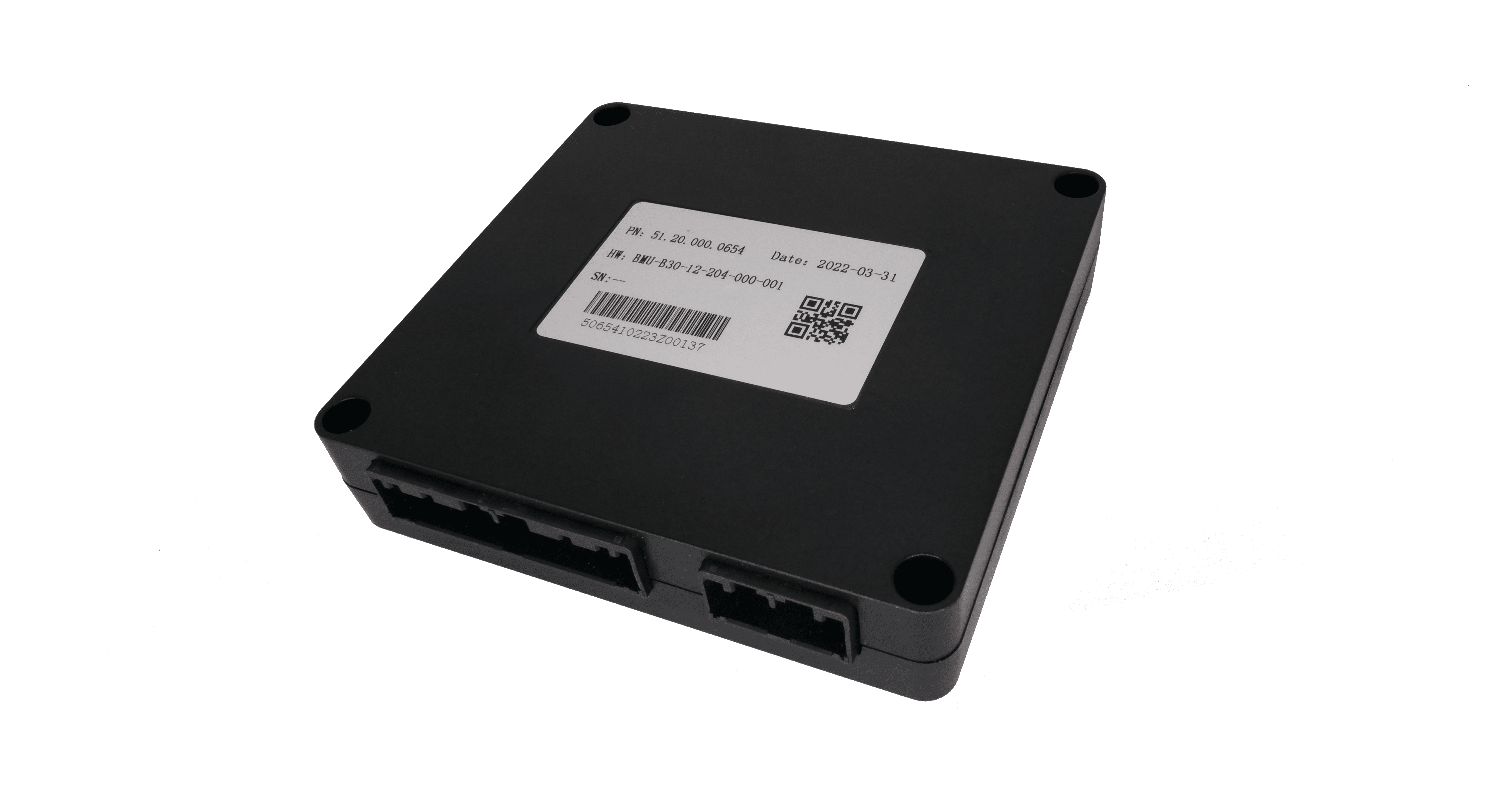

12 Strings
Max 12-str voltage sampling
Max 14-str temperature sampling
Max 30pcs BMU can be connected via isoSPI
Features
High Compatibility
Compatible with various types of batteries: LFP, NCM, LTO, etc
01
Active Equalization
It supports a maximum balance current of 5A to realize power transmission between adjacent cells, and has a regular self-test function
02
Passive balancing
Supports a maximum of 80mA balancing current
03
isoSPI Communication
The BMU transmits data to the BCU via isoSPI and up to 30 BMUs can be connected in one isoSPI link
04
RS-485 Communication
BMU and BCU communicate for updates, fan control/diagnostics, automatic address assignment, and more
05
Authentication
All plastic parts are UL-94V0 flammable rating Comply with 1500V safety regulations, support 1500V system UL certification
06
Product Parameters
