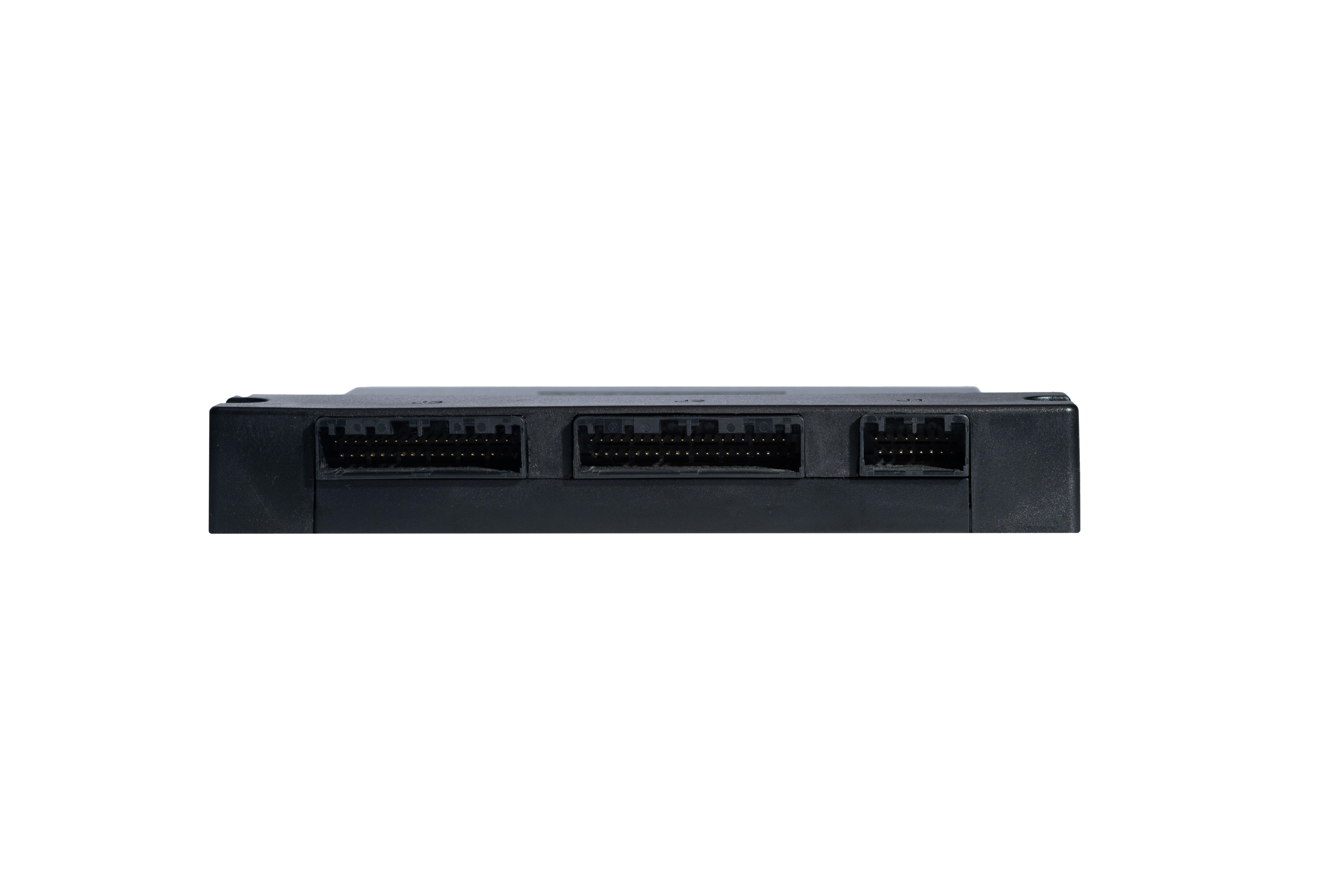

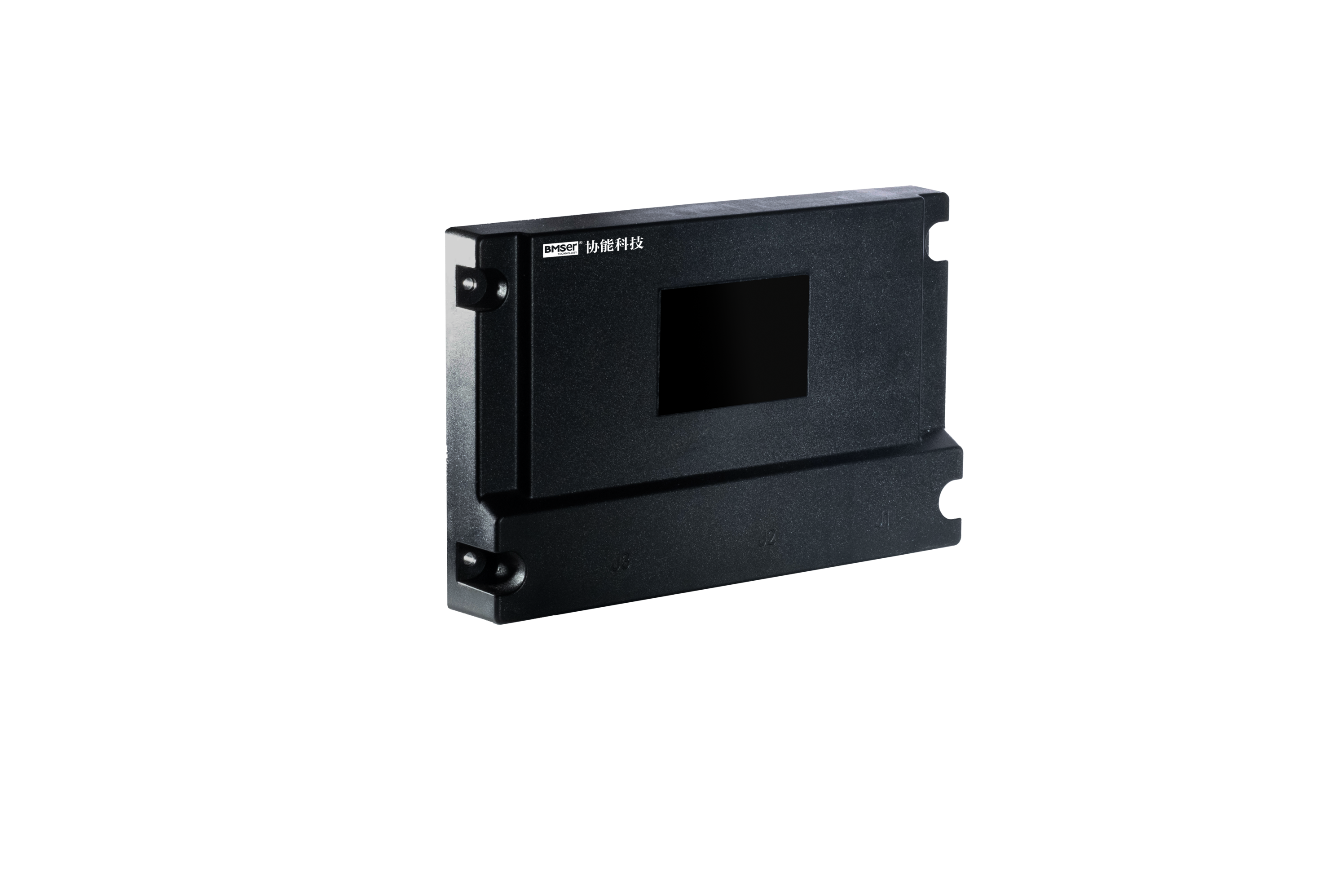

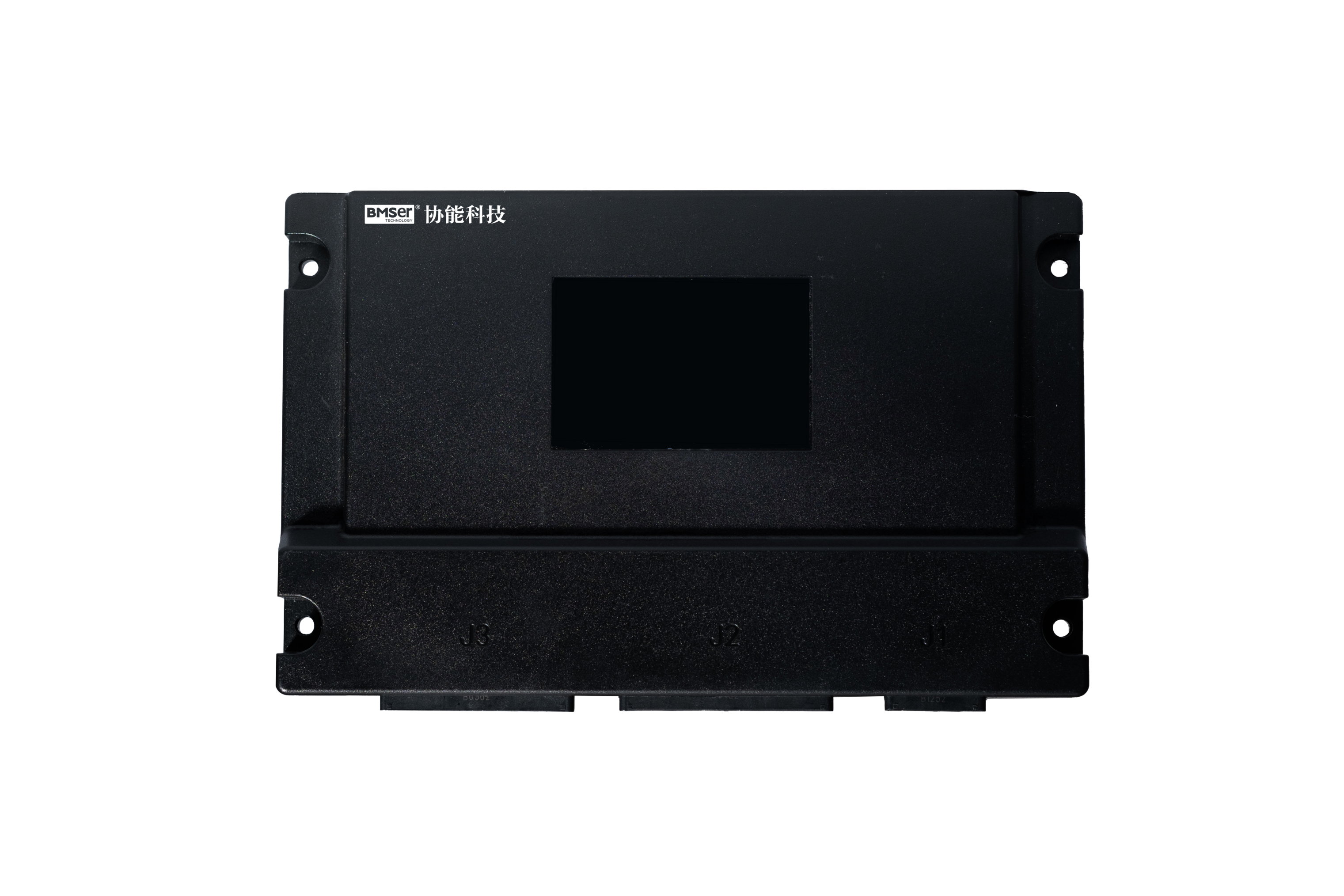

24 Strings (BMU)

Max 24-str voltage sampling
Max 28-str temperature sampling
Max 16pcs BMU can be connected via isoSPI

PDF Download

Features

High Compatibility

Compatible with various types of batteries: LFP, NCM, LTO, etc

Active Equalization

It supports a maximum balance current of 5A to realize power transmission between adjacent cells, and has a regular self-test function

Passive balancing

Supports a maximum of 80mA balancing current

isoSPI Communication

The BMU transmits data to the BCU via isoSPI and up to 30 BMUs can be connected in one isoSPI link

RS-485 Communication

BMU and BCU communicate for updates, fan control/diagnostics, automatic address assignment, and more

Authentication

All plastic parts are UL-94V0 flammable rating Comply with 1500V safety regulations, support 1500V system UL certification

High Compatibility

Compatible with various types of batteries: LFP, NCM, LTO, etc

Active Equalization

It supports a maximum balance current of 5A to realize power transmission between adjacent cells, and has a regular self-test function

Passive balancing

Supports a maximum of 80mA balancing current

isoSPI Communication

The BMU transmits data to the BCU via isoSPI and up to 30 BMUs can be connected in one isoSPI link

RS-485 Communication

BMU and BCU communicate for updates, fan control/diagnostics, automatic address assignment, and more

Authentication

All plastic parts are UL-94V0 flammable rating Comply with 1500V safety regulations, support 1500V system UL certification

Product Parameters

	BMU-B31-12-204	BMU-B31-16-104	BMU-B31-24-204(A)	BMU-B31-52-504
Max cell string	12	16	22	52
Cell voltage sampling range	0-5V
Voltage sampling point	12	16	22	52
Temperature sampling point	14	19	28	56
Balance	Active balance: 2.5A (default) Passive balance: 80mA		Active balance: 2.5A (default) Passive balance: 100mA	Active balance: 2.5A (default) Passive balance: 120mA
Fan	Support max 2-ch fan		N/A	Support max 2-ch fan
Nominal working voltage	1500V
Working power	240mW
Isolation	100MΩ
Communication	RS-485, isoSPI 2-ch HSD output 2-ch I/O output and input		RS-485, isoSPI	RS-485, isoSPI 2-ch I/O output and input
Certification	UL94-V0 Meet UL certification
