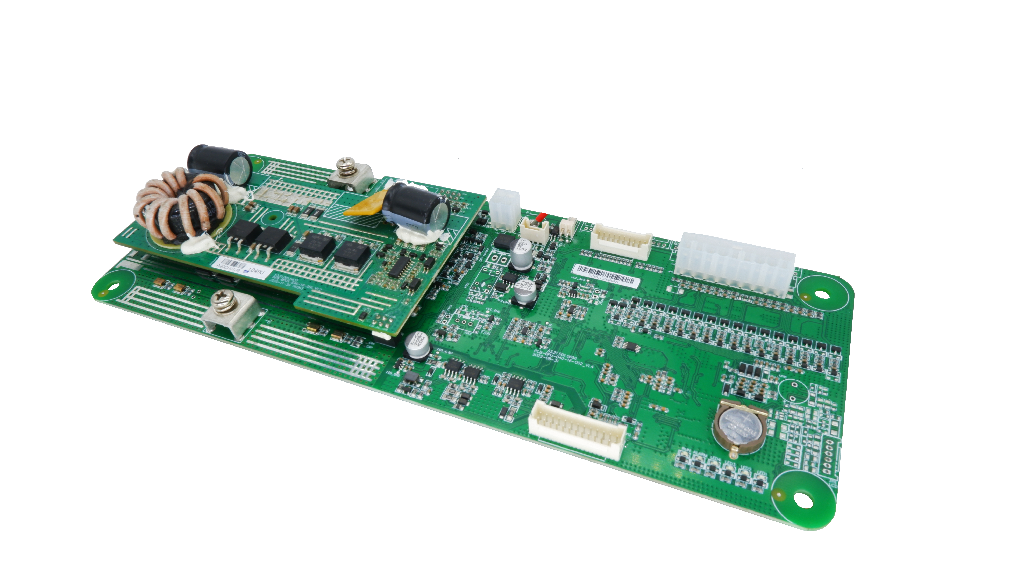

BPU-D40 board
16-str voltage sampling
16 cell temperature sampling
1-ch MOS, 1-ch ambient sampling
Features
Current sampling function
the sampling range supports ±200A , and the sampling accuracy is as high as 1% . Provide a maximum passive balancing current of 100mA.，The default number of parallel connection is less than 6
01
High speed short circuit protection
with 120~300A short circuit range and 100~400us protection delay
02
Ultra low power sleep and wake-up
≤200uA sleep mode and ≤50uA deep sleep mode
03
Product Parameters
BPU-D40-16-003 | BPU-D30-16-013 | |
Working voltage | 0-60V | 36-60V |
Charging voltage | 54-60V | |
Continuous charging current | 50A | 50-55A |
Continuous discharging current | 100A | 50-55A |
Working temperature | -30~85℃ | -20~70℃ |
Storage temperature | -40~125℃ | -40~85℃ |
Humidity | 95% | 85% |
