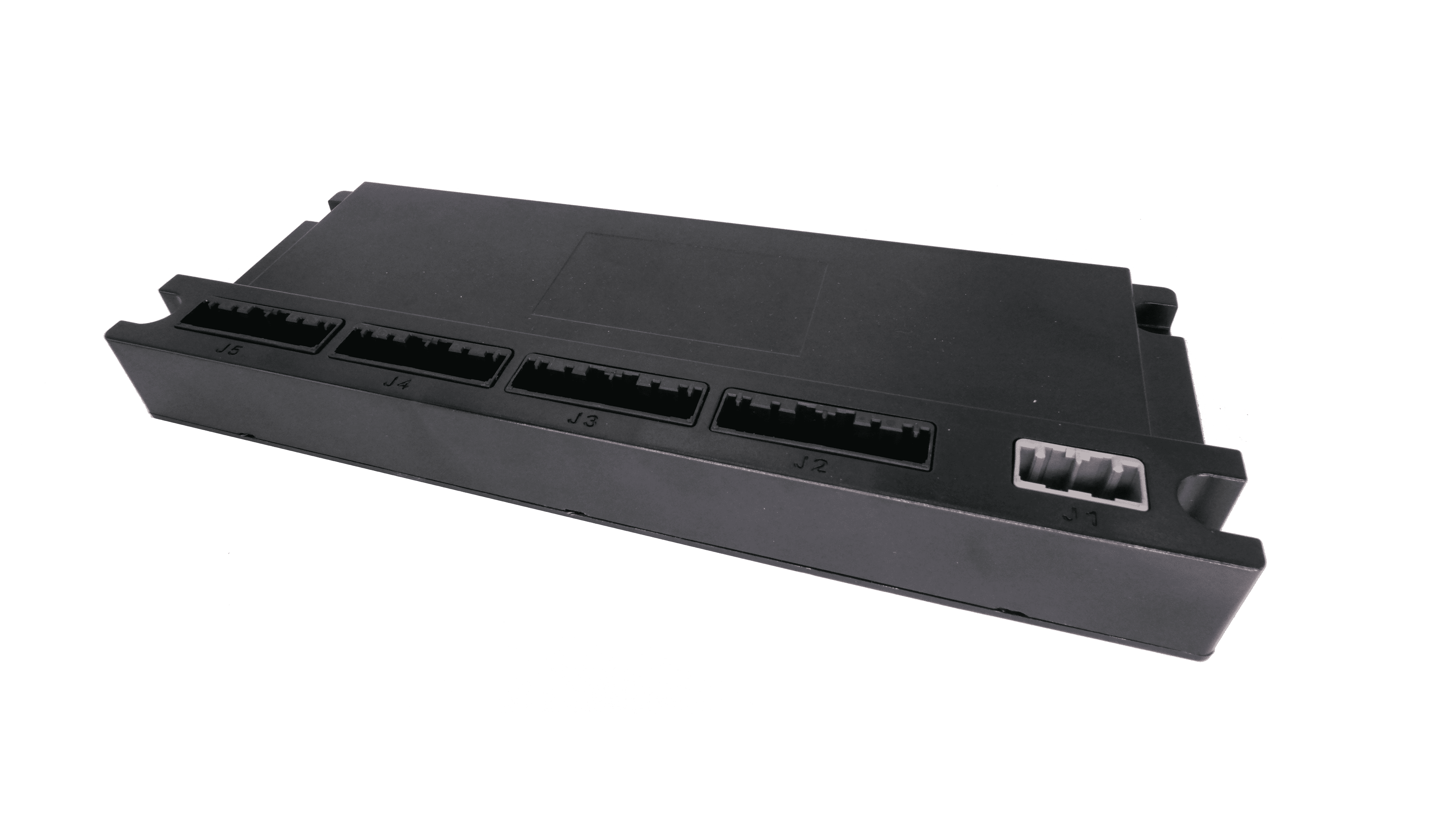

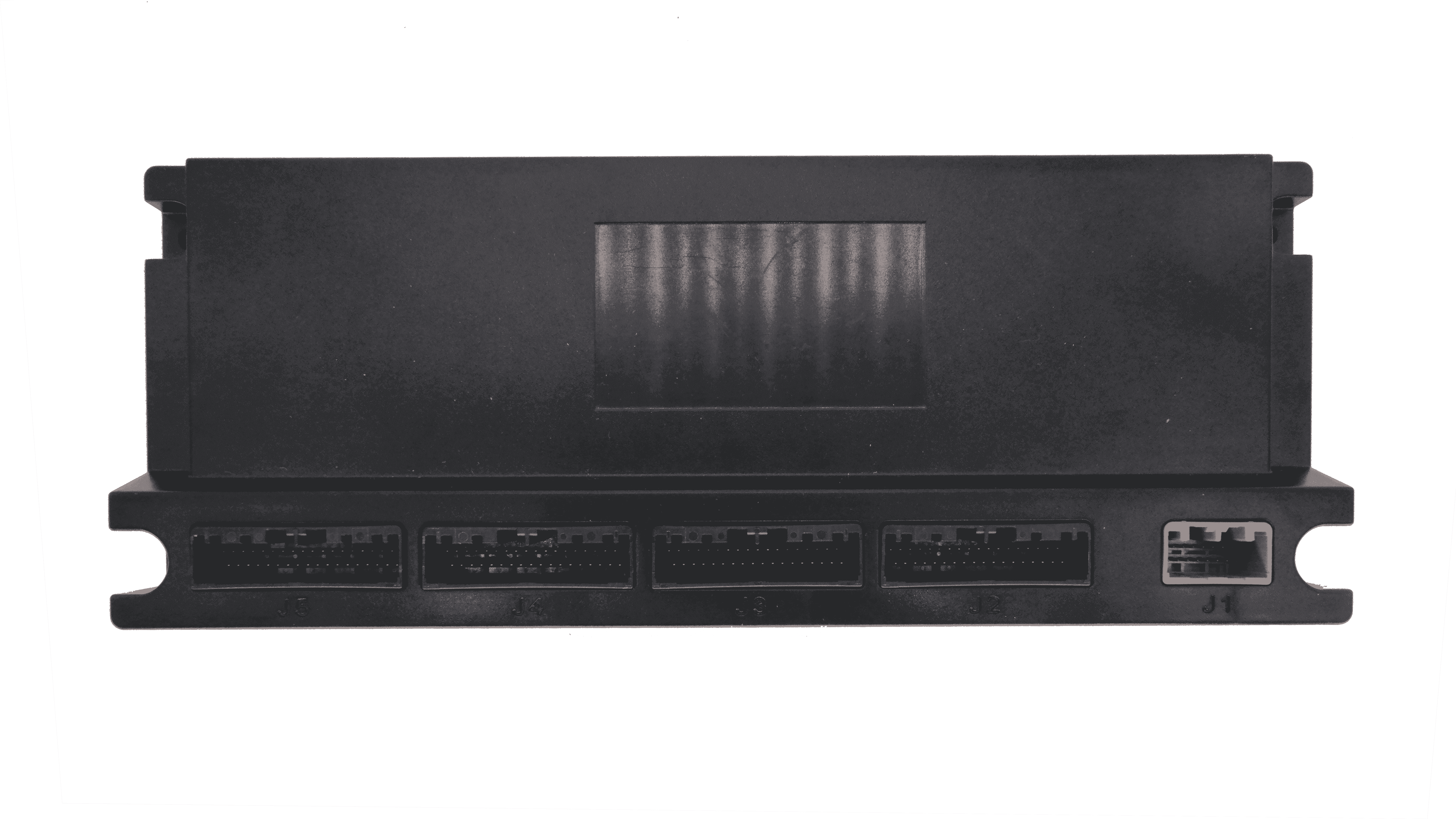

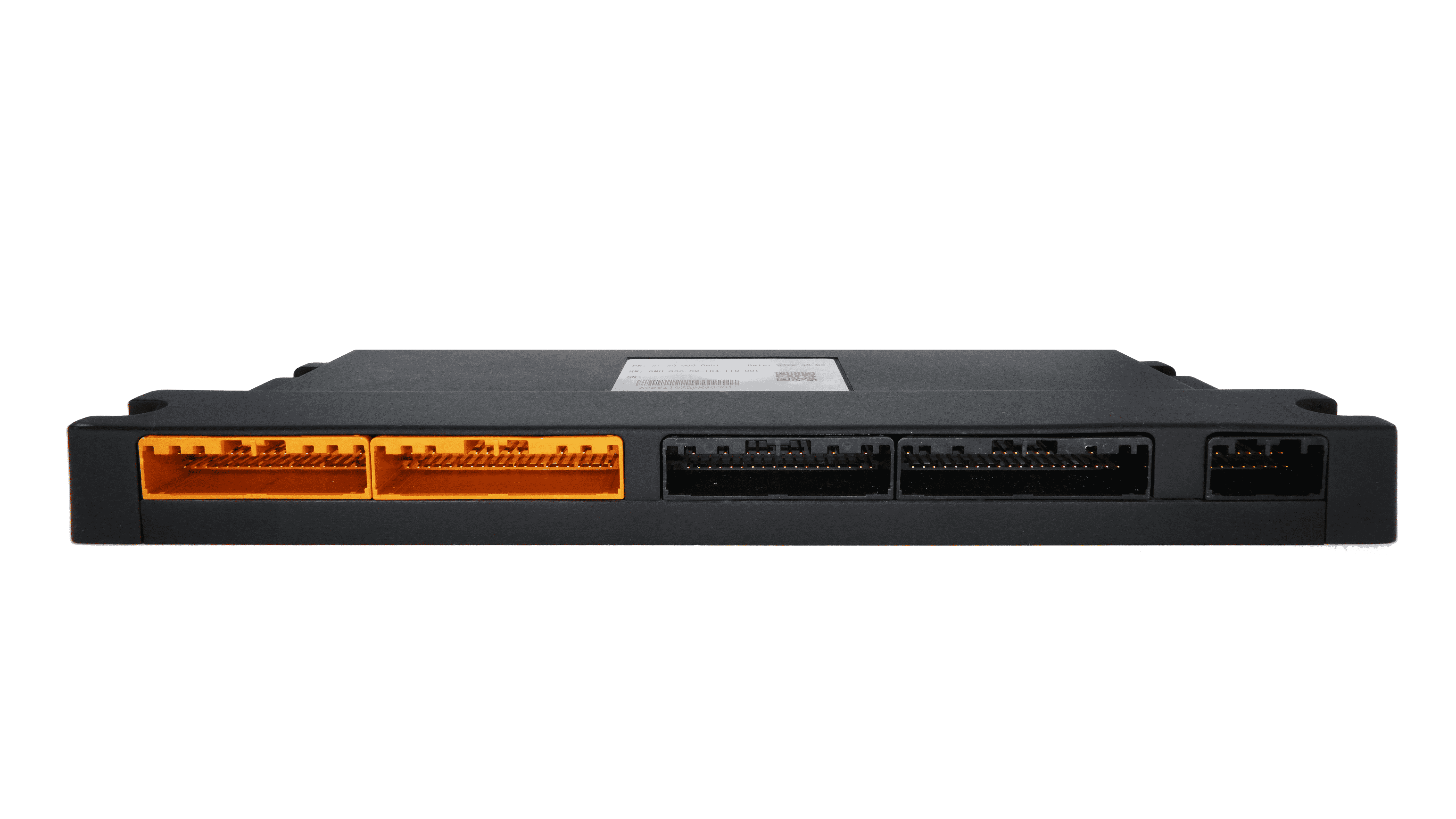

64 Strings（BMU)

Max 64-str voltage sampling
Max 32-str temperature sampling
Max 8pcs BMU can be connected via isoSPI

PDF Download

Features

Passive balancing

support max 120mA balancing current

isoSPI

communication: BMU transferring data to BCU via isoSPI, max 32pcs BMU can be connected in one isoSPI link

RS-485

communication: BMU and BCU communication, can be used for updating, fan control/diagnose, address auto assign, etc

Authentication

All plastic components comply with UL-94V0 flame retardant grade Comply with 1500V safety regulations and support 1500V system UL certification

Passive balancing

support max 120mA balancing current

isoSPI

communication: BMU transferring data to BCU via isoSPI, max 32pcs BMU can be connected in one isoSPI link

RS-485

communication: BMU and BCU communication, can be used for updating, fan control/diagnose, address auto assign, etc

Authentication

All plastic components comply with UL-94V0 flame retardant grade Comply with 1500V safety regulations and support 1500V system UL certification

Product Parameters

	BMU-B30-12-204	BMU-B30-16-504	BMU-B30-24-204	BMU-B30-32-508	BMU-B30-52-508	BMU-B30-64-504
Max cell string	12	16	24	32	52	64
Cell voltage sampling range	0-5V
Voltage sampling point	12	16	24	32	52	64
Temperature sampling point	14	18	28	36	52	52
Balance	Passive: 80mA	Passive: 120mA	Passive: 80mA	Passive: 100mA		Passive: 120mA
Fan	Support max 2-ch fan			Support max 1-ch fan
Nominal working voltage	1500V
Working power	240mW
Isolation	100MΩ
Communication	RS-485, isoSPI 2-ch HSD output 2-ch I/O output and input			RS-485, isoSPI 1-ch HSD output 1-ch I/O output and input
Certification	UL94-V0 Meet UL certification
